TOUCHSCREEN PC
Microstyr levererar industriella touchscreen PC


AFLPK

ELO TOUCH

CV30

CV60

Wave




AFLPK
 TOUCHSCREEN PC



AFLPK-folder
PanelPC_Afolux.pdf



Pris från 6500:- kr netto
Fläklös touchscreen PC  i storlekar 5.6", 5.7", 7", 8.4", 10.4", 12.1", 15", 17", 19"
Fläktlös 5.7" Panel-PC med Touchscreen (Pekskärm med inbyggd PC)
• Upplösning 640x480, Ljusstyrka 400cd/m2
• Resistive Touchscreen
• IP-64 vatten/dammtät frontpanel
• CPU Intel Atom 1,5Mhz (fläktlös), RAM 1-2 GB,Flashdisk 1-16GB
• WLAN med inbyggd antenn, Inbyggda högtalare
• I/O: 1st LAN, 2st USB 2.0, 2st RS-232/422/485 COM, VGA,Bluetooth
• Operativ: Windows XP Pro, XP Embedded, Win CE, Linux
• Monteras i panel (i tex skåpsdörr), på vägg (häng upp som en plasma), på fot, arm, eller 19"-rack.
• AT/ATX, startar om automatiskt vid ett eventuellt strömavbrott
• Antivibration protection & rugged design

Optioner:
Panel mounting kit: AFLPK-08
Wall mounting kit: AFLWK-12
Stand mounting: STAND-A08, STAND-100, STAND-150
Arm mounting: ARM-11, ARM-31
OS:Windows XP Embedded,Windows XP Pro,Windows CE,Linux
Flashdisk: 1-16GB
DC/DC Converter: 60W 9-30VDC input, IDD-930160-KIT




  Elo brochure

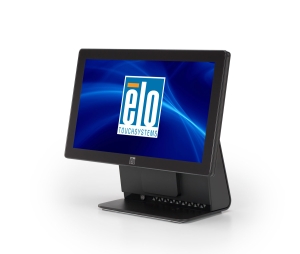

ELO TOUCH DATOR
S
midig och välutrustad prisvärd touchscreen dator. Passar även för POS kassa register. Fläktlösprocessor gör att datorn är tyst och strömsnål.

Det finns en mängd olika interface till denna dator, som magnetkortsläsare, fingerprintsläsare, WLAN, etc.
Kompatibel med WXP, WCE, W7


Artnr Beskrivning Lagersaldo Pris netto SEK
E221407 Elo X7-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 2.7GHz Core i7-4790T Quad- 0 24995
E353607 Elo X7-20 Wide Touchcomputer, Rev A - 20-inch 16:9 LED LCD, Haswell Fanned 2.7GHz Core i7-4790T Quad 0 24639
E260426 Elo X5-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 2.0GHz Core i5-4590T Quad- 0 24478
E220458 Elo X7-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Haswell Fanned 2.7GHz Core i7-4790T Quad- 0 24340
E221597 Elo X7-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 2.7GHz Core i7-4790T Quad- 0 24007
E220646 Elo X7-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Haswell Fanned 2.7GHz Core i7-4790T Quad- 0 23364
E303069 Elo X5-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 2.0GHz Core i5-4590Tó Quad 0 22469
E221210 Elo X5-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 2.0GHz Core i5-4590T Quad- 0 21746
E353405 Elo X5-20 inch. Wide Touchcomputer, Rev A - 20-inch 16:9 LED LCD, Haswell Fanned 2.0GHz Core i5-4590 0 21389
E413768 Elo X5-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Haswell Fanned 2.0GHz Core i5-4590T Quad- 0 21389
E193203 Elo X5-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Haswell Fanned 2.0GHz Core i5-4590T Quad- 0 21091
E221801 Elo X5-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 2.0GHz Core i5-4590T Quad- 0 20770
E220839 Elo X5-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Haswell Fanned 2.0GHz Core i5-4590T Quad- 0 20127
E414741 Elo X5-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 2.0GHz Core i5-4590T Quad- 0 20092
E414538 Elo X3-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 19645
E413953 Elo X5-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Haswell Fanned 2.0GHz Core i5-4590T Quad- 0 19437
E221023 Elo X3-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 19346
E413585 Elo X3-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 18990
E353206 Elo X3-20 inch. Wide Touchcomputer, Rev A - 20-inch 16:9 LED LCD, Haswell Fanned 3.1GHz Core i3-4350 0 18990
E193008 Elo X3-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 18692
E414144 Elo X3-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 18657
E131132 Elo X3-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 18359
E261988 Elo X3-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 17968
E132701 Elo X3-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 17842
E127236 Elo X3-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 17716
E414336 Elo X3-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 17693
E270176 Elo PayPoint Touchcomputer, 13.3-inch LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad-Core J1900,P 0 17497
E130531 Elo X3-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 17395
E129958 Elo X3-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 17187
E413385 Elo X3-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 17038
E270404 Elo PayPoint Touchcomputer, 13.3-inch LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad-Core J1900,P 0 16992
E227076 Elo X3-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 16878
E132310 Elo X3-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 16878
E128994 Elo X3-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 16740
E131905 Elo X3-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 16556
E130734 Elo X3-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 16223
E132107 Elo X3-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 15902
E270602 Elo PayPoint Touchcomputer, 13.3-inch LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad-Core J1900,P 0 15695
E001462 Elo X3-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 15568
E401360 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 15557
E261782 Elo X2-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 15443
E322843 Elo X2-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 15201
E335345 Elo Computer Module for IDS 02 Series, IntelCore? 4th Gen i7 (4.0 GHz), HD4600 graphics, 8 GB RAM, 3 0 15053
E335147 Elo Computer Module for IDS 02 Series, IntelCore? 4th Gen i7 (4.0 GHz), HD4600 graphics, 8 GB RAM, 3 0 15053
E001460 Elo X3-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Haswell Fanned 3.1GHz Core i3-4350T Dual- 0 14926
E441292 Elo X2-20 inch. Wide Touchcomputer,Rev A - 20-inch 16:9 LED LCD, Bay Trail-D Fanless 1.99GHz Celeron 0 14788
E192825 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 14788
E335733 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 14546
E127040 Elo X2-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 14467
E359052 Elo X2-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 14214
E128214 Elo X2-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 13950
E297874 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 13916
E128419 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 2 13824
E133275 Elo X2-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 13616
E129377 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 13616
E128604 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 13616
E127426 Elo X2-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 13491
E129769 Elo X2-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 13491
E130156 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 13307
E334949 Elo Computer Module for IDS 02 Series, IntelCore? 4th Gen i7 (4.0 GHz), HD4600 graphics, 8 GB RAM, 3 0 13180
E130345 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 13100
E131321 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 13100
E001299 Elo Computer Module for IDS 01 Series, Intel Core 4th Gen i7 4.0 GHz, HD4600 graphics, 8 GB RAM, 320 0 13060
E001300 Elo Computer Module for IDS 01 Series, Intel Core 4th Gen i7 4.0 GHz, HD4600 graphics, 8 GB RAM, 320 0 13060
E131524 Elo X2-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 12974
E132889 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 12974
E129189 Elo X2-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 12974
E130926 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 12836
E126848 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 12836
E132507 Elo X2-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 12652
E314251 Elo PayPoint Touchcomputer, 13.3-inch LED LCD, ARM A9 2GHz Dual-Core,Projective Capacitive, Zero Bez 0 12492
E131715 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 12319
E128022 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 12319
E128025 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 12319
E334744 Elo Computer Module for IDS 02 Series, IntelCore? 4th Gen i5 (3.7 GHz), HD4600 graphics, 4 GB RAM, 3 0 12216
E334542 Elo Computer Module for IDS 02 Series, IntelCore? 4th Gen i5 (3.7 GHz), HD4600 graphics, 4 GB RAM, 3 0 12216
E127822 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 11997
E128794 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 11814
E127631 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 11814
E001459 Elo X2-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 11676
E001457 Elo X2-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 11676
E001298 Elo Computer Module for IDS 01 Series, Intel Core 4th Gen i7 4.0 GHz, HD4600 graphics, 8 GB RAM, 320 0 11318
E001456 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron J1900 0 11034
E001454 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 11034
E333965 Elo Computer Module for IDS 02 Series, IntelCore? 4th Gen i3 (3.4 GHz), HD4400 graphics, 2 GB RAM, 3 0 10529
E334168 Elo Computer Module for IDS 02 Series, IntelCore? 4th Gen i3 (3.4 GHz), HD4400 graphics, 2 GB RAM, 3 0 10529
E001297 Elo Computer Module for IDS 01 Series, Intel Core 4th Gen i5 3.7 GHz, HD4600 graphics, 4 GB RAM, 320 0 10448
E001296 Elo Computer Module for IDS 01 Series, Intel Core 4th Gen i5 3.7 GHz, HD4600 graphics, 4 GB RAM, 320 0 10448
E334358 Elo Computer Module for IDS 02 Series, IntelCore? 4th Gen i5 (3.7 GHz), HD4600 graphics, 4 GB RAM, 3 0 10368
E009007 Elo Computer Module for IDS 01 Series, Intel Core i5 3.6 GHz, HD4000 graphics, 4 GB RAM, 320 GB Hard 0 10132
E584199 Elo Computer Module for IDS 01 Series, Intel Core i5 3.6 GHz, HD4000 graphics, 4 GB RAM, 320 GB Hard 0 10132
E021388 Elo 22Ë Interactive Signage, Full HD IPS display, ARM A15 1.7 GHz quad-core processor, 2GB RAM, 16GB 0 10091
E377673 Elo X2-17 Touchcomputer, Rev A - 17-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 9736
E377470 Elo X2-15 Touchcomputer, Rev A - 15-inch Standard LED LCD, Bay Trail-D Fanless 1.99GHz Celeron Quad- 0 9736
E021201 Elo 15Ë Interactive Signage, Full HD IPS display, ARM A15 1.7 GHz quad-core processor, 2GB RAM, 16GB 0 9058
E001293 Elo Computer Module for IDS 01 Series, Intel Core 4th Gen i3 3.4 GHz, HD4400 graphics, 2 GB RAM, 320 0 8898
E001294 Elo Computer Module for IDS 01 Series, Intel Core 4th Gen i3 3.4 GHz, HD4400 graphics, 2 GB RAM, 320 0 8898
E333775 Elo Computer Module for IDS 02 Series, IntelCore? 4th Gen i3 (3.4 GHz), HD4400 graphics, 2 GB RAM, 3 0 8714
E001295 Elo Computer Module for IDS 01 Series, Intel Core 4th Gen i5 3.7 GHz, HD4600 graphics, 4 GB RAM, 320 0 8706
E272400 Elo Computer Module for IDS 01 Series, Intel Core i5 3.6 GHz, HD4000 graphics, 4 GB RAM, 320 GB Hard 0 8706
E487570 Elo Computer Module for IDS 01 Series, Intel Core i3 3.3 GHz, HD2550 graphics, 2 GB RAM, 320 GB Hard 0 8640
E318353 Elo PayPoint for iPad, cash drawer, barcode scanner, receipt printer, customer facing display, White 0 7991
E001292 Elo Computer Module for IDS 01 Series, Intel Core 4th Gen i3 3.4 GHz, HD4400 graphics, 2 GB RAM, 320 0 7156
E776797 Elo Computer Module for IDS 01 Series, Intel Core i3 3.3 GHz, HD2550 graphics, 2 GB RAM, 320 GB Hard 0 7147
E021014 Elo 10Ë Interactive Signage, HD 1280 x 800 IPS display, ARM A15 1.7 GHz quad-core processor, 2GB RAM 0 6533
E336899 Elo IDS Android Computer Module for IDS 02 Series, QualcommSnapdragonTM APQ8064 CPU, 2 GB RAM, 16 GB 0 6039
E000739 Elo IDS Android Computer Module Qualcomm SnapdragonTM APQ8064 CPU, 2 GB RAM, 16 GB flash 4x USB 2.0 0 5212
E688656 Elo webcam module for IDS 01 Series 0 832
E332197 Elo PayPoint Cash Drawer Kit, Slot Design, worldwide currency 0 493








ECV30 brochure

INTERMEC CV30
Robust, smidig och välutrustad. Intermec CV30, industridator för fast montage i truckar och miljöer där datorn måste klara hårda påfrestningar. Den är byggd för att klara smuts, damm, kyla och fukt. Eftersom datorn är avsedd för olika tillämpningsområden kan man välja mellan operativsystemen Microsoft Windows CE.NET 5.0 och Windows Mobile 5.0. CV30 har också inbyggt stöd för Cisco-kompatibel WiFi, Bluetooth och RFID.

Artnr Beskrivning Lagersaldo Pris netto SEK
VE011-2022 Keyboard, compact, CV30 4 1886
VE011-2010 KIT,SCREEN PROTECTOR,5 EA,CV30 0 1813
SVCCV30-2LC1R CV30, LIMITED COMPREHENSIVE, 2 DAY TURN, 1 YEAR, RENEWAL 0 1796
VE011-2006 Kit, Wall Mounting bracket, CV30 0 1454
SVCCV30-5LC1R CV30, LIMITED COMPREHENSIVE, 5 DAY TURN, 1 YEAR, RENEWAL 0 1439
236-197-001 Cbl, RS232 12ft 9pin coil for CV30/CV60 0 929
VE011-2013 Cable Protector, Wall Mount, CV30 0 919
VE011-2003 Mounting kit,keyboard,CV30 17 873
VE011-2017 Cable, Dual USB, CV30 0 579
VE011-2004 Stylus, kit, tethered CV30 (1 w holder ) 0 487
VE011-2015 Stylus, replacement,CV30 tethered (5 pk) 0 487






CV60 brochure

INTERMEC CV60
Robust och välutrustad industridator.

Intermec CV60, industridator för fast montage i truckar och miljöer där datorn måste klara hårda påfrestningar. Den är byggd för att klara smuts, damm, kyla och fukt (IP54/IP65). CV60 är med sina integrerade dubbla antenner är enkel att installera. En modulär uppbyggnad gör att byte av radio, minneskort eller hårddisk snabbt kan utföras av egen personal. CV60 har en 12,1" högupplöst TFT SVGA färg- och pekskärm.

Artnr Beskrivning Lagersaldo Pris netto SEK
203-788-002 Kit, CV60-Smart-UPS w/3 Cbl, RoHS 0 4402
VE012-6020S-B0 Sub-Assy-Touch Panel, Service CV60 0 3885
SVCCV60-2LC1R CV60C, LIMITED COMPREHENSIVE, 2 DAY TURN, 1 YEAR, RENEWAL 0 2342
G9A-KB001-02 CV60 - Keybd Mounting Kit 0 1905
SVCCV60-5LC1R CV60C, LIMITED COMPREHENSIVE, 5 DAY TURN, 1 YEAR, RENEWAL 0 1874
SVCCV60-5WT1R CV60C, WEAR AND TEAR, 5 DAY TURN, 1 YEAR, RENEWAL 0 1665
203-789-001 CV60 C - Kit, UPS Battry Replacement, RoHS 0 1268
805-615-304 Antenna, 802a/b/g Int CV60, No MMCX RoHS 0 1066
203-787-001 KIT, CV60C AC Wall Chgr-US , Intl,RoHS 0 1061
236-197-001 Cbl, RS232 12ft 9pin coil for CV30/CV60 0 929
235-196-001 Kit, 60WINXP,V2.01,CV60 Rec CD,WINXP Pro 0 589
VM3078CABLE ADAPTER CABLE FOR CV60 DC POWER CABLE 0 543
