ETIKETT UPPRULLARE , OMSPOLARE
Microstyr
llevererar etikett omspolare, upprullare, skärstationer,
etiketträknar stationer, etikett dipsensrar med tillbehör
|
Etikett
omspolnings station |
Etikett
upprulare |

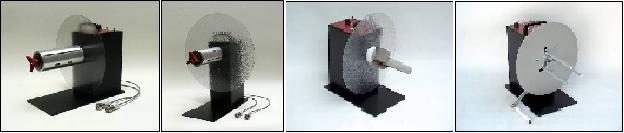

Etikett
avrulare |

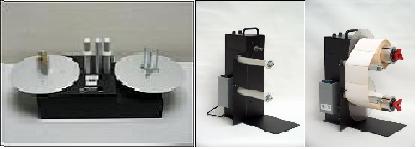

Etikett
räknarstation |

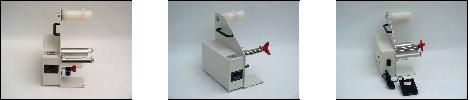

Etikett
dispenser |

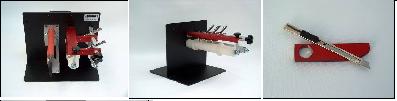

Etikett
skärstation |
Etikett
bobiner |

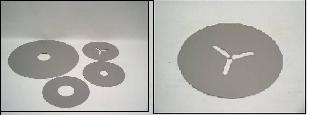

Etikett
plattor |
|
|
|
|

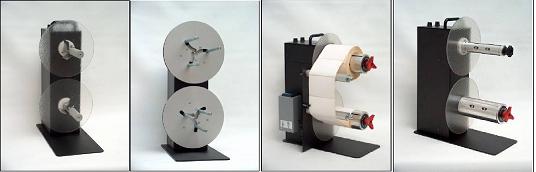

OMSPOLNINGS STATIONER |
TWIN-CAT-2
Pris untan
hållare
9300:- kr |
LÄGG TILL 2 st bobin hållare |
Boin diameter |
Bredd |
Antal flanders |
Pris per st |
Pris |
| |
ACH |
CAT-2 with an Adjustable Core
Holder for
any core size from 25 to
101mm in diameter. With inner
flange.
Use APG-CAT if you wish to also
guide the
outer edge of your label.
|
155 |
280 |
1250 |
7098
|
| CAT-40G |

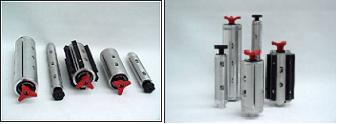

CHUCK |
The industry standard Heavy-duty
Label Rewinder with an easy-
loading ‘Quick-Chuck’. Ideal for
production work. 76mm standard.
See page 23 for other
available
‘Quick-Chuck’ sizes.
|
170 |
300 |
1250 |
8510
|
| 10-INCHES |
CAT-2 for labels up to 255mm wide.
76mm
standard; 38, 40, 44 or
70mm on request.
|
255 |
300 |
1250 |
7212
|
| 1-INCH |
CAT-2 for 25.4mm diameter cores.
|
155 |
220 |
1250 |
6506 |
| |
Gear motor driven. Tight rewind up
to
400mm.
76mm ‘Quick-Chuck’ standard.
See page 23 for other
available
‘Quick-Chuck’ sizes.
|
170 |
400 |
300 |
11925 |
|
|
|
BILLIGA "MINI-CAT" UPPRULLARE
KAN ANVÄNDAS
SOM AVRULLARE |
| MODEL |
ADD SUFFIX |
DESCRIPTION |
LABEL
WIDTH
[mm] |
ROLL
DIAM
[mm] |
SPEED
[mm/sec] |
PRIS
[SEK] |
| MC-10 |
MC-10Quality, low-cost Rewinder & Unwinder,
coreless or 76mm
standard. 38, 40, 44 or
70mm core rewinding on request.
Bi-directional with multiple rewind /
unwind force settings. |
125 |
220 |
500 |
3854 |
MC-10
1 inch |
Same as above
but with a 25,4mm core. |
125 |
220 |
500 |
3854 |
| MC-11 |
Same as
MINI-CAT-10 but with
continuously Adjustable Core Holder for
25 to 101mm diameter cores. |
115 |
220 |
500 |
4093 |

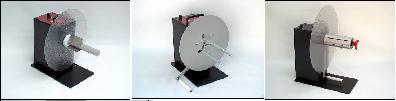

HEAVY
DUTY UPPRULLARE
KAN ANVÄNDAS
SOM AVRULLARE |
| CAT-2 |
STANDARD |
The ‘Industry Standard’ Heavy-duty
Label
Rewinder. 76mm standard;
38, 40, 44, 70 mm on request.
|
155 |
300 |
1250 |
6506 |
| ACH |
CAT-2 with an Adjustable Core
Holder for
any core size from 25 to
101mm in diameter. With inner
flange.
Use APG-CAT if you wish to also
guide the
outer edge of your label.
|
155 |
280 |
1250 |
7098
|
| CHUCK |
The industry standard Heavy-duty
Label Rewinder with an easy-
loading ‘Quick-Chuck’. Ideal for
production work. 76mm standard.
See page 23 for other
available
‘Quick-Chuck’ sizes.
|
170 |
300 |
1250 |
8510
|
| 10-INCHES |
CAT-2 for labels up to 255mm wide.
76mm
standard; 38, 40, 44 or
70mm on request.
|
255 |
300 |
1250 |
7212
|
| 1-INCH |
CAT-2 for 25.4mm diameter cores.
|
155 |
220 |
1250 |
6506 |
| CAT-40G |
|
Gear motor driven. Tight rewind up
to
400mm.
76mm ‘Quick-Chuck’ standard.
See page 23 for other
available
‘Quick-Chuck’ sizes.
|
170 |
400 |
300 |
11925 |
|
|
|
| Artnr |
Beskrivning |
Lagersaldo |
Pris netto SEK |
| LMX472 |
Foot Switch to start and stop the MC Rewinders |
0 |
786 |
|
|
| Artnr |
Beskrivning |
Lagersaldo |
Pris netto SEK |
|
|
|
| Artnr |
Beskrivning |
Lagersaldo |
Pris netto SEK |
| LMX561 |
PACK STATION FOR LABEL DISPENSERS |
0 |
620 |
|
|
|
| Artnr |
Beskrivning |
Lagersaldo |
Pris netto SEK |
|
|
|
| Artnr |
Beskrivning |
Lagersaldo |
PPris netto SEK |
|
|
|
| Artnr |
Beskrivning |
Lagersaldo |
Pris netto SEK |
|
|
|
|
|
|
